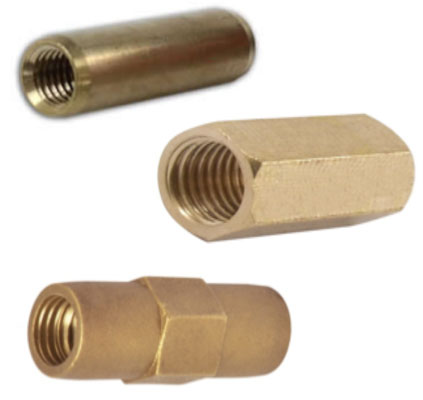

Couplers
Made of Brass or high grade Silicon Bronze for higher strength with counted bore for protecting the rod threads from damage. Couplers can be supplied in round, half hexagonal and full hexagonal body.
| Thread Dia | Length (mm) |
| 7/16" | 70 |
| 1/2" | 70 |
| 9/16" | 70 |
| 5/8" | 70 |
| 3/4" | 70 |

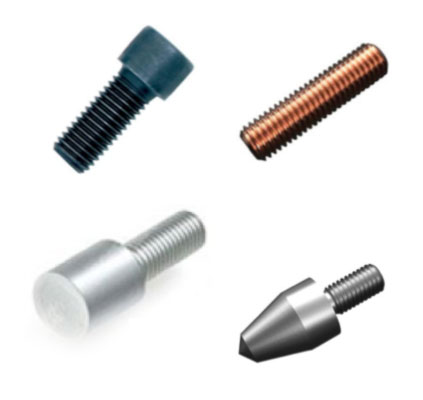

Driving Studs, Head, Dowel And Spike
Made of high tensile steel or stainless steel (round or hex). Suitable for both manual and power hammering. Electroplated or zinc passivation as per customer requirement. Size shall suitable as per threading and tapping on earth rods.

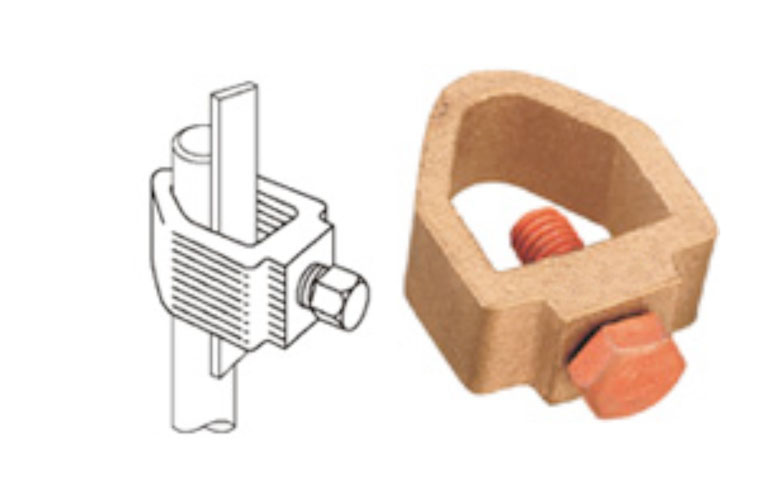

Clamp Type "A" (Rod To Tape)
Used for joining earth rods with copper tapes. These clamps are available to suit different sizes of earth rods and copper tapes. The clamp bodies, made of Brass / Gunmetal / Aluminum Bronze, and bolts made of Phosphor Bronze / Stainless steel / Mild Steel copper plated ensure perfect fit and lasting connection.
| Thread Dia | Length (mm) |
| 9.5 | 25 |
| 11.0 | 25 |
| 12.7 | 25 |
| 14.2 | 25 |
| 17.2 | 25 |
| 17.2 | 50 |
| 20.0 | 50 |
| 20.0 | 50 |

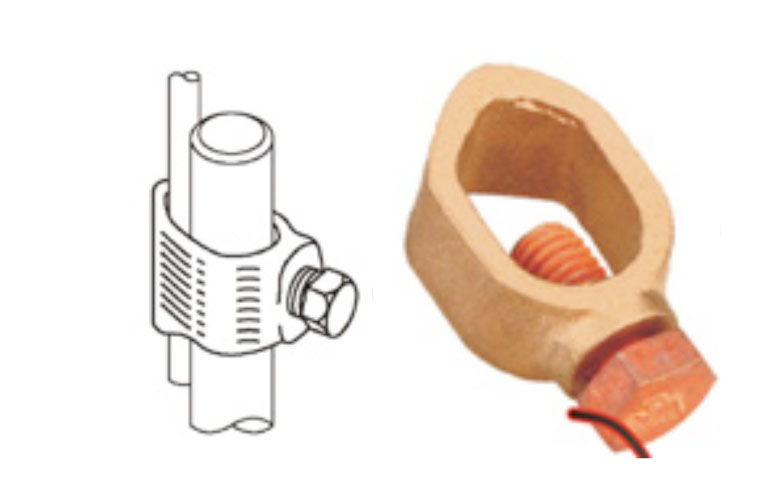

Clamp Type "B" (Rod To Cable)
These clamps are used for joining earth rods with copper cables. The clamp bodies, made of Brass / Gunmetal / Aluminum Bronze, and bolts made of Phosphor Bronze / Stainless steel / Mild Steel copper plated ensure perfect fit and lasting connection.
| Thread Dia | Length (mm) |
| 9.5 | 25 |
| 11.0 | 25 |
| 12.7 | 25 |
| 14.2 | 25 |
| 17.2 | 25 |
| 17.2 | 50 |
| 20.0 | 50 |
| 20.0 | 50 |

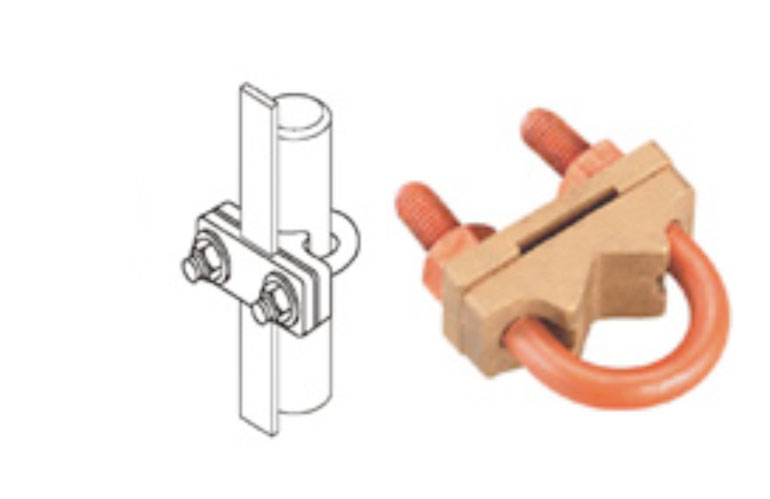

Clamp - U Bolt Rod
These clamps are used to connect tape to the earth rod. Available in single plate and double plate, application being the same but suitable for fixing different angles. Made of strong copper alloy / Gunmetal.
| Rod Dia (mm) | Tape Width (mm) |
| 9.5 | 25 |
| 11.0 | 25 |
| 12.7 | 25 |
| 14.2 | 25 |
| 16 | 25 |
| 17.2 | 25 |
| 20.0 | 50 |
| 25.0 | 50 |
| 14.0 | 25 |
Clamp U Bolt Rod to Tape
These clamps are used to connect tape to the earth rod. Available in single plate and double plate, application being the same but suitable for fixing different angles. Made of strong copper alloy / Gunmetal.
| Rod Dia (mm) | Tape Width (mm) |
| 9.5 | 25 |
| 11.0 | 25 |
| 12.7 | 25 |
| 14.2 | 25 |
| 16 | 25 |
| 17.2 | 25 |
| 20.0 | 50 |
| 20.0 | 50 |
| 14.0 | 25 |

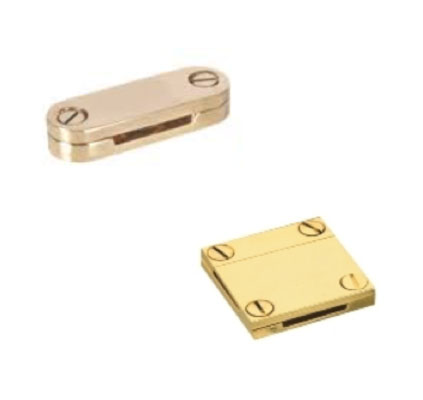

Saddles
Single tape saddle is used for fixing tapes vertically or horizontally on walls or roof.
Double tape saddle or square tape clamp is used for crossing over tapes or for making straight through joints in a network of tapes
Saddles are supplied as per the tape size needs to be fixed.
Material: Brass or Gun Metal

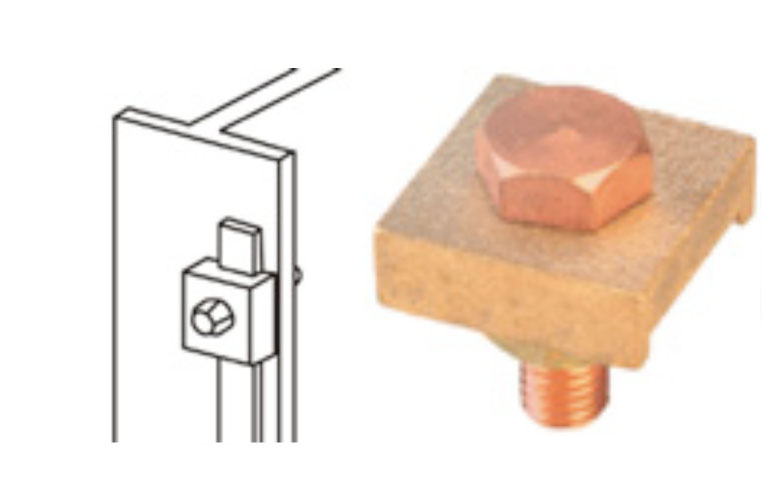

B Bond
Made of Gunmetal and these bonds are used for bonding tape to metal structure. Bolts are made of Phosphor Bronze /Stainless Steel /Mild Steel copper plated.
| Tape Width (mm) | Bolt Size |
| 25.0 | M10 |
| 38.0 | M10 |
